SCF-17/07 FLOATING SCROLL COMPRESSOR

>Patent protected Floating Scroll Technology >100% oil free >Maintenance free >No tip seals or ballast valves >Compact size ideal for portable equipment Applications >PSA oxygen concentrator >Medical equipment

Technical Data

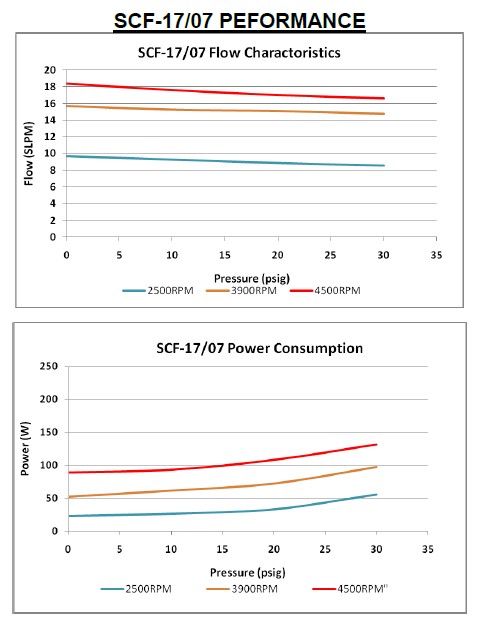

Characteristics
Get A Quote
Downloads
Rated Pressure0.76Barg (11Psig)
Nominal Motor Power100W (0.14HP)
Capacity17L/min (0.6cfm)
Voltage24VDC
Dimensions102×89×87mm(4.03×3.50×3.43inch)
Connection(Inlet) G1/8″
Connection(Outlet) G1/8″
Noise55dB(A)
Weight0.8Kg
Cooling SystemAir cooled
Maximum Speed4300 RPM



Note: Items marked with asterisks are mandatory accessories
